Description

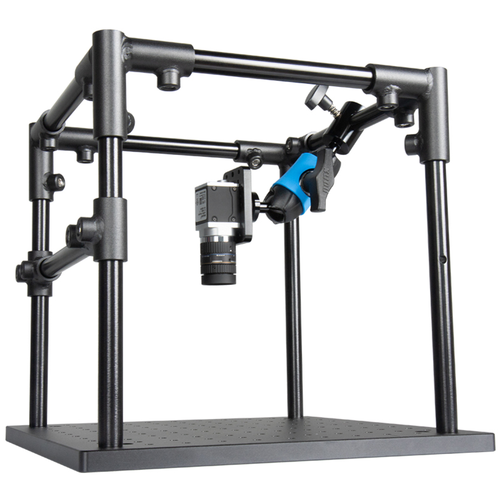

The KUPO VisionGrid 16 combines a 30 × 30 cm precision optical mounting platform, a modular 16 mm tube frame, and adjustable mounting arms to create a flexible three-dimensional workspace for machine vision development and testing.
The arms attach directly to the 16 mm frame and can be quickly moved and repositioned as the setup evolves. The range covers approximately 8 to 40 cm, including Knuckle arms in 8, 15, and 23 cm lengths and Omni arms in 20, 30, and 40 cm lengths, providing flexible support for machine vision cameras, compact lights, and sensors.
Designed for prototyping, proof-of-concept development, and mounting-position validation, the system helps machine vision integrators and research teams compare camera angles, lighting directions, and working distances before designing the final fixed fixture—reducing the time required for repeated setup and testing.
The arms attach directly to the 16 mm frame and can be quickly moved and repositioned as the setup evolves. The range covers approximately 8 to 40 cm, including Knuckle arms in 8, 15, and 23 cm lengths and Omni arms in 20, 30, and 40 cm lengths, providing flexible support for machine vision cameras, compact lights, and sensors.
Designed for prototyping, proof-of-concept development, and mounting-position validation, the system helps machine vision integrators and research teams compare camera angles, lighting directions, and working distances before designing the final fixed fixture—reducing the time required for repeated setup and testing.
