Description

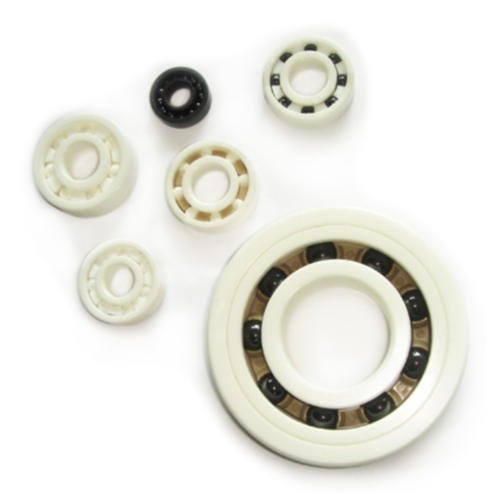

Full Ceramic Bearings differ from hybrid ceramic bearings in that their inner rings, outer rings, and rolling elements (balls) are made entirely of ceramic materials. Only the cage may be crafted from PTFE (Teflon), PEEK, or ceramic itself, depending on the specific application requirements.
This "pure ceramic" structure endows them with extreme physical properties that conventional steel bearings simply cannot match. Below is a detailed overview of their core features, material classifications, and primary applications:
1. Core FeaturesUltimate Corrosion & Rust Resistance: Ceramic materials—such as Zirconium Dioxide (ZrO2), Silicon Nitride (Si3N4), and Silicon Carbide (SiC)—possess exceptional chemical stability. They are entirely impervious to water, acids, alkalis, saltwater, or chemical solvents, making them completely rust-proof.
Ultra-High Temperature Resistance: While traditional steel bearings lose significant strength above 200°C, full ceramic bearings (specifically cageless, full-complement types) can withstand extreme temperatures ranging from 800°C to 1200°C, allowing them to operate reliably in high-temperature furnaces and aerospace equipment.
Non-Magnetic Properties: Ceramics are completely non-magnetic. They will not become magnetized even when exposed to strong magnetic fields, avoiding the attraction of iron particles and ensuring the smooth operation of precision instruments.
Complete Electrical Insulation: Because the inner/outer rings and the balls are all insulators, they block electrical currents 100%, entirely eliminating the risk of electrical erosion (damage to raceways caused by electric arcing).
Oil-Free Self-Lubrication: Ceramics exhibit an extremely low coefficient of friction and are immune to metal-to-metal seizure. In extreme environments where conventional lubricants cannot be used—such as high vacuums or cleanrooms—they can run completely dry without any added lubricants.
Lightweight Design: With a density only 40% to 50% that of steel, full ceramic bearings significantly reduce the overall weight of rotating assemblies.
2. Main Material ClassificationsZirconium Dioxide (ZrO2): The most common material used for ceramic bearings. Typically white, it offers superior impact toughness among ceramics, and its coefficient of thermal expansion is closest to that of steel. However, its high-temperature limits and high-speed capabilities are slightly inferior to silicon nitride.
Silicon Nitride (Si3N4): The premium choice with the most comprehensive performance profile. Typically black, it features extreme hardness, a lighter weight than zirconia, excellent high-temperature resistance, and ultra-low frictional torque, making it ideal for ultra-high-speed and ultra-high-temperature environments.
3. Primary Applications
Full ceramic bearings are primarily utilized in extreme operating conditions where conventional bearings cannot survive:
Chemical & Electroplating Equipment: Used in conveyor lines and pumps that are frequently submerged in acid/alkali etching liquids, chemical solutions, or cleaning agents.
Semiconductor & Cleanroom Equipment: High-vacuum environments and vacuum evaporation systems (where traditional lubricants would vaporize and contaminate wafers, full ceramic bearings enable completely dry operation).
High-Temperature Industrial Furnaces: Drive shafts in high-temperature baking ovens within steel mills, glass factories, and processing plants.
Medical & Marine Exploration: MRI machines (which require entirely non-magnetic components) and subsea diving equipment exposed to seawater (for complete saltwater corrosion resistance).
Cryogenic Engineering: Fluid equipment operating in extremely low-temperature environments, such as those handling liquid nitrogen or liquid oxygen.
This "pure ceramic" structure endows them with extreme physical properties that conventional steel bearings simply cannot match. Below is a detailed overview of their core features, material classifications, and primary applications:
1. Core FeaturesUltimate Corrosion & Rust Resistance: Ceramic materials—such as Zirconium Dioxide (ZrO2), Silicon Nitride (Si3N4), and Silicon Carbide (SiC)—possess exceptional chemical stability. They are entirely impervious to water, acids, alkalis, saltwater, or chemical solvents, making them completely rust-proof.
Ultra-High Temperature Resistance: While traditional steel bearings lose significant strength above 200°C, full ceramic bearings (specifically cageless, full-complement types) can withstand extreme temperatures ranging from 800°C to 1200°C, allowing them to operate reliably in high-temperature furnaces and aerospace equipment.
Non-Magnetic Properties: Ceramics are completely non-magnetic. They will not become magnetized even when exposed to strong magnetic fields, avoiding the attraction of iron particles and ensuring the smooth operation of precision instruments.
Complete Electrical Insulation: Because the inner/outer rings and the balls are all insulators, they block electrical currents 100%, entirely eliminating the risk of electrical erosion (damage to raceways caused by electric arcing).
Oil-Free Self-Lubrication: Ceramics exhibit an extremely low coefficient of friction and are immune to metal-to-metal seizure. In extreme environments where conventional lubricants cannot be used—such as high vacuums or cleanrooms—they can run completely dry without any added lubricants.
Lightweight Design: With a density only 40% to 50% that of steel, full ceramic bearings significantly reduce the overall weight of rotating assemblies.
2. Main Material ClassificationsZirconium Dioxide (ZrO2): The most common material used for ceramic bearings. Typically white, it offers superior impact toughness among ceramics, and its coefficient of thermal expansion is closest to that of steel. However, its high-temperature limits and high-speed capabilities are slightly inferior to silicon nitride.
Silicon Nitride (Si3N4): The premium choice with the most comprehensive performance profile. Typically black, it features extreme hardness, a lighter weight than zirconia, excellent high-temperature resistance, and ultra-low frictional torque, making it ideal for ultra-high-speed and ultra-high-temperature environments.
3. Primary Applications
Full ceramic bearings are primarily utilized in extreme operating conditions where conventional bearings cannot survive:
Chemical & Electroplating Equipment: Used in conveyor lines and pumps that are frequently submerged in acid/alkali etching liquids, chemical solutions, or cleaning agents.
Semiconductor & Cleanroom Equipment: High-vacuum environments and vacuum evaporation systems (where traditional lubricants would vaporize and contaminate wafers, full ceramic bearings enable completely dry operation).
High-Temperature Industrial Furnaces: Drive shafts in high-temperature baking ovens within steel mills, glass factories, and processing plants.
Medical & Marine Exploration: MRI machines (which require entirely non-magnetic components) and subsea diving equipment exposed to seawater (for complete saltwater corrosion resistance).
Cryogenic Engineering: Fluid equipment operating in extremely low-temperature environments, such as those handling liquid nitrogen or liquid oxygen.
