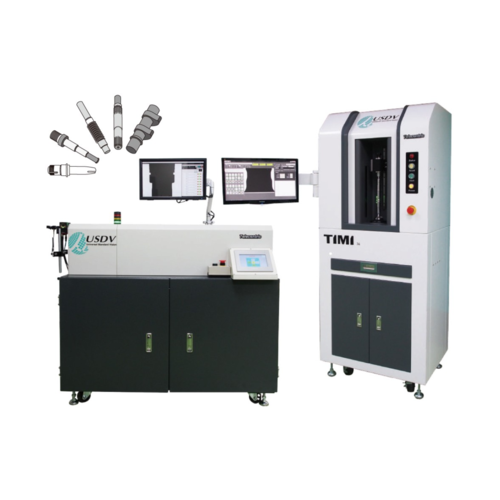

TIMI (Telecentric Image Measurement Instrument)

◎ The CNC shaft measurement is more precise because the shaft is held by the double-sided center-tips.
◎ Automatically measure more than 30 dimensions of a 300 mm long shaft in less than 40 seconds.
◎ The radial measuring uncertainty is ±(2+ D/100) μm, and the measured value can be used to compensate machining parameters.
◎ It can resolve the Grinding Diameter Difference up to 1μm.
◎ The measuring uncertainty for the plug gauge's pitch diameter is only ±3μm.
◎ The precision-machined arc radius has a measuring uncertainty of only ± 5μm.
◎ Automatically analyze the center coordinate of a shaft and reconstruct the radial profile.
◎ Measure the roundness, cylindricity, concentricity and run-out in a vertical rotation based on the central axis coordinate.
◎ The user-friendly interface allows you to quickly select an image area and measure it.
◎ Measuring data can be automatically stored in a databank and linked to a client's ERP/MES/SPC system.

# TIMI 40P has a measuring width of 40 mm, while TIMI 60P has a measuring width of 60 mm.

---
