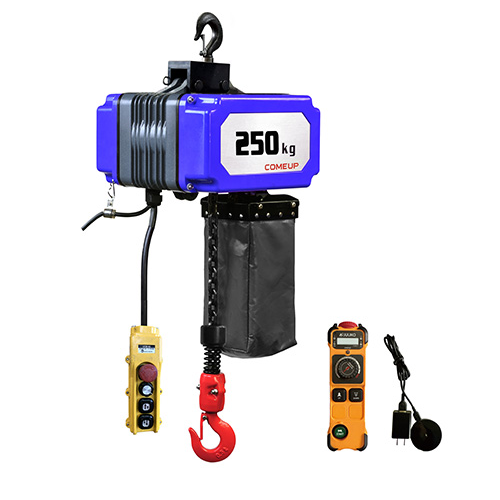

Brushless DC Motor Chain Hoist with Wireless Remote Controller - 250 kg lifting load

Model: BMC-250r

Category: AI & Intelligent Applications

Exhibitor:

COMEUP INDUSTRIES INC.

Booth No: L1203

0
Share :
Share :

Description
* Brushless motor generates no carbon dust or sparks, and has long lifespan.
* Excellent energy-saving efficiency using DC variable frequency control, which provides low startup and rated current, and ensures smooth operation.
* The system operates on 2.4GHz wireless frequency for stable, interference-free control.
* Equipped with both wired and wireless dual-speed push-button switches, including emergency stop. Low-speed setting adjustable via rotary switch.
* These wireless dual-speed push-button switches are equipped with wireless charging to simplify daily use.
* It is especially suitable for industries requiring precise positioning and accurate material feeding.
* Equipped with 6 major safety features:
1. Auto power-off on motor overheating.
2. Auto power-off for crane overload.
3. Auto power-off for abnormal input voltage (too high /too low).
4. Auto power-off for motor stall.
5. Safety torque limiter to crane overload.
6. Upper and lower limit switches to prevent chain over-wrapping
* Brake System driven by motor dynamic brake, paired with mechanical ratchet pawls for maximum safety
* IP55 rating.
* Aluminum alloy housing provides durability to overall structure.
* Comes with an industrial-grade plug, which can be directly inserted into a single-phase 200-240V power.
* Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASME B30.7.
