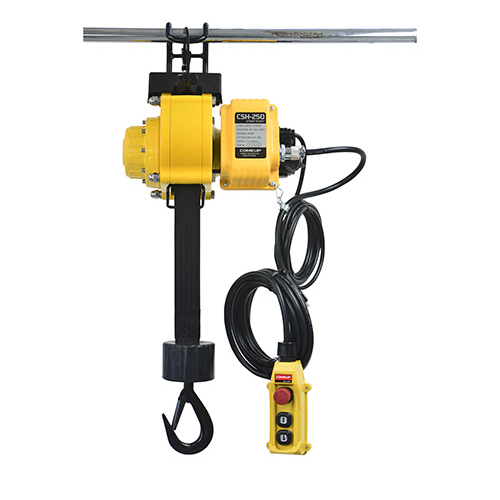

Compact Strap Hoist - 250 kg lifting load

The CSH-250 Compact Strap Hoist is specifically designed for precision material handling and operations in high-cleanliness environments. With a rated lifting capacity of 250 kg, it delivers an excellent combination of safety, convenience, and operational stability. Its lightweight design allows for quick and easy installation, making it suitable for a wide range of workplaces.

Unlike conventional chain or wire rope hoists, the CSH-250 utilizes a high-strength lifting strap, providing smoother and quieter operation while eliminating common issues such as chain jamming and wire rope tangling. In addition, the strap does not generate cracks, metallic wear particles, or sparks, making it particularly suitable for industries with stringent cleanliness requirements, including electronics, semiconductors, food processing, biotechnology, and cleanroom applications.

The hoist is powered by a low-noise permanent magnet motor that delivers efficient, stable, and continuous performance. A triple-brake safety system effectively prevents load slippage, significantly enhancing lifting safety. An integrated upper limit switch prevents over-hoisting and hook jamming, providing reliable upper-travel protection.

For enhanced operational safety, the pendant control is equipped with an emergency stop button that immediately cuts off power in the event of an emergency, helping protect both personnel and equipment.

The CSH-250 also comes standard with an industrial-grade power plug and can be operated directly from a single-phase household power supply, eliminating the need for complicated wiring and enabling true plug-and-play operation.

The product complies with the European CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility (EMC) Directive 2014/30/EU, and EN 60204-32:2008 safety standards, making it an ideal lifting solution for applications requiring safety, cleanliness, and high operational efficiency.

---
