Description

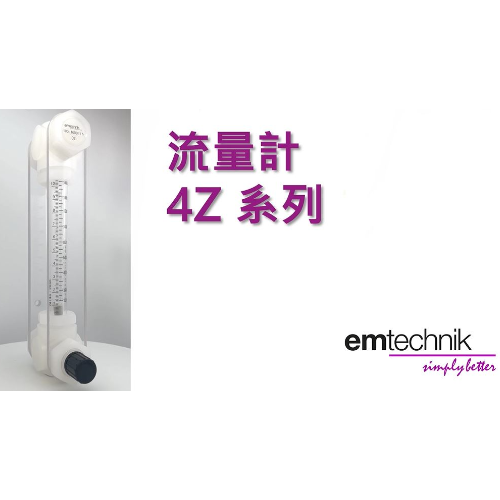

4Z flow meters, housing : PFA/PVDF/PP, floats : PTFE, max. pressure resist : 6 bar g, max. temperature : 180 degree C.
Advantage over previous flow meters
- Unified concept
- Compact (smaller) design
- One moulding tool for all designs
- No metallic components; no corrosion
Disadvantage over previous flow meters
- PTFE is no longer possible, the alternative is PFA
flow Input: above, below, left, right, in front or rear。 flow Output: above, below, left, right, in front or rear。 The variant with one, two or no valve is possible.
Gaseous and liquid media that do not adversely affect the physical and chemical properties of the respective housing and sealing material.
Mounting options
It is fastened using the preassembled wall plate or as panel mounting. To do this, the wall plate is removed and replaced by the control panel.
Advantage over previous flow meters
- Unified concept
- Compact (smaller) design
- One moulding tool for all designs
- No metallic components; no corrosion
Disadvantage over previous flow meters
- PTFE is no longer possible, the alternative is PFA
flow Input: above, below, left, right, in front or rear。 flow Output: above, below, left, right, in front or rear。 The variant with one, two or no valve is possible.
Gaseous and liquid media that do not adversely affect the physical and chemical properties of the respective housing and sealing material.
Mounting options
It is fastened using the preassembled wall plate or as panel mounting. To do this, the wall plate is removed and replaced by the control panel.
