Description

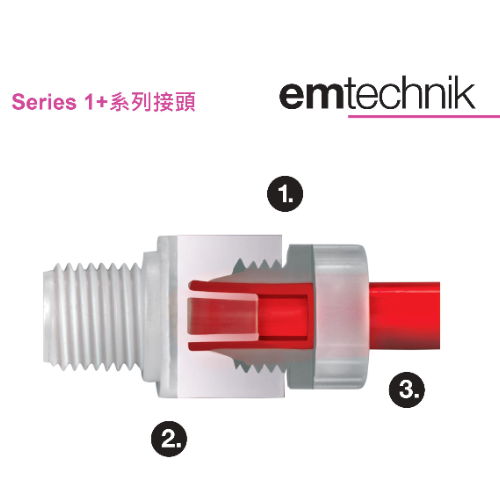

1. The entire 1+ series connector design has only two parts, one is the connector body and the other is the pressure screw. The clamping ring and the pressure screw are an integral injection molding design that can directly lock the connector, so there is no need the clamping ring and there will be no other parts falling off.
2. The built-in connecting sleeve and the tube thread are an integral injection molding design that will not be damaged or deformed by external forces.
3. It is very simple to operate the 1+ series connector. You can complete the seal by just tightening it with your hands without any tools. This design reduces the assembly time. If necessary, you can also tighten the pressure screw with a wrench because there is no narrow gap or dead corner in the middle.
2. The built-in connecting sleeve and the tube thread are an integral injection molding design that will not be damaged or deformed by external forces.
3. It is very simple to operate the 1+ series connector. You can complete the seal by just tightening it with your hands without any tools. This design reduces the assembly time. If necessary, you can also tighten the pressure screw with a wrench because there is no narrow gap or dead corner in the middle.
