Description

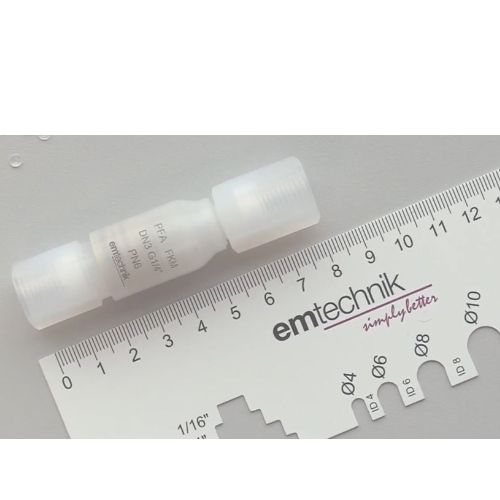

Small size, high air tightness, can quickly disassemble the switch.
Main body material: PFA. There is no metal in the part in contact with the fluid.
Double-sided European standard G1/4" internal thread, with EM-TECHNIK 1C or 1+ PFA external thread straight connector, connect various sizes of smooth elastic tubes.
The thread gauge is manufactured according to DIN, USAS, JIS specifications.
No built-in sealing ring, no loss.
Built-in shut-off valve, can be quickly and safely switched.
Built-in return spring: 3M TFM1600 polytetrafluoroethylene.
High temperature resistant to 140 degrees Celsius C.
Residual liquid: 0.3 cm3.
Disassembly life: 50,000 times.
Pressure working range 0.5 – 6 bar.
Main body material: PFA. There is no metal in the part in contact with the fluid.
Double-sided European standard G1/4" internal thread, with EM-TECHNIK 1C or 1+ PFA external thread straight connector, connect various sizes of smooth elastic tubes.
The thread gauge is manufactured according to DIN, USAS, JIS specifications.
No built-in sealing ring, no loss.
Built-in shut-off valve, can be quickly and safely switched.
Built-in return spring: 3M TFM1600 polytetrafluoroethylene.
High temperature resistant to 140 degrees Celsius C.
Residual liquid: 0.3 cm3.
Disassembly life: 50,000 times.
Pressure working range 0.5 – 6 bar.
