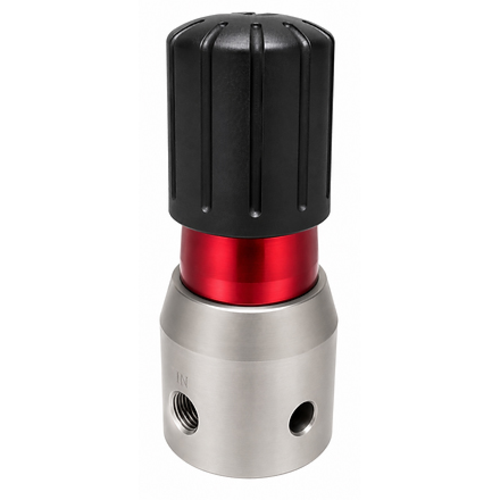

Medium-Pressure Liquid Regulator

Pressure control components for industrial liquid feeding systems

The MFR series is a medium-pressure control element used in paint feeding systems and industrial liquid conveying systems. It can stably adjust the feeding pressure to the working pressure required by the equipment, so as to keep the pressure and flow rate stable during the liquid conveying process.


Installation location

Installed downstream of the pump or on the medium-pressure feed main line, it is used to adjust the pressure of the liquid output by the pump to the working pressure required by the equipment and reduce the impact of pump pulsation or system load changes on downstream equipment.


Product Features

The MFR series uses a diaphragm pressure regulating structure, which can precisely control the output pressure within a medium pressure range, keeping the liquid feed pressure stable. Stable feed pressure helps improve coating quality and reduce pressure fluctuations during liquid transport.


Application

• Coating recycling system

• Automatic spraying equipment

• Medium pressure feed main road

Industrial liquid transfer systems


Technical information

Maximum inlet pressure: 60 bar

Maximum export pressure: 40 bar

Maximum control flow rate: 11.4 L/min

Applicable fluids: Liquids

Inlet/outlet size: 3/8" PT

---
