Pneumatic Low-Pressure Liquid Regulator

Pressure stabilizing element for pneumatically controlled liquid feeding system

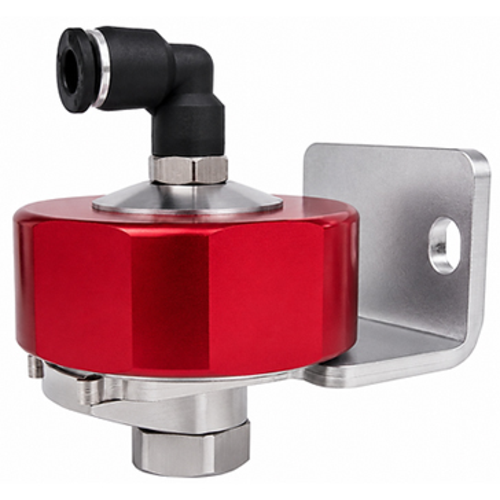

The LFR-A01 is a pneumatically controlled low-pressure liquid regulator, suitable for feeding and conveying systems that require stable control of low-pressure liquids. Through external air pressure signal control, the liquid output pressure can be precisely adjusted to maintain stable system pressure.


Installation location

Installed on the liquid supply line or equipment inlet, it is used to adjust the supply pressure to the working pressure required by the equipment and maintain a stable liquid supply pressure.


Product Features

The LFR-A01 employs a pneumatic diaphragm pressure control structure, utilizing external air pressure signals to control liquid pressure output. Through stable pressure control, the impact of feed pressure fluctuations on equipment operation and process quality can be reduced.


Application

• Precision coating feeding system

• Automated spraying equipment

• Low-pressure liquid transport system

• Industrial fluid pressure control

Technical specifications

Maximum inlet pressure: 12 bar; Maximum outlet pressure: 7 bar; Maximum controlled flow rate: 1.2 L/min; Applicable fluid: Liquid.

Inlet/outlet size: 1/4"PT

---
