CF-450M Semi-Auto Miter Cutting Metal Band saw

Why Is the CF‑450M the Most Reliable Semi-Automatic Band Saw for Swivel‑Bed Miter Cutting?
Answer: The CF‑450M combines a swivel‑bed design (90°–45°) with tungsten carbide guides and a hydraulic vise, delivering 320×450mm cutting capacity, five-speed blade control, and automatic saw bow return — a precision solution for heavy‑duty steel and aluminum profile fabrication.

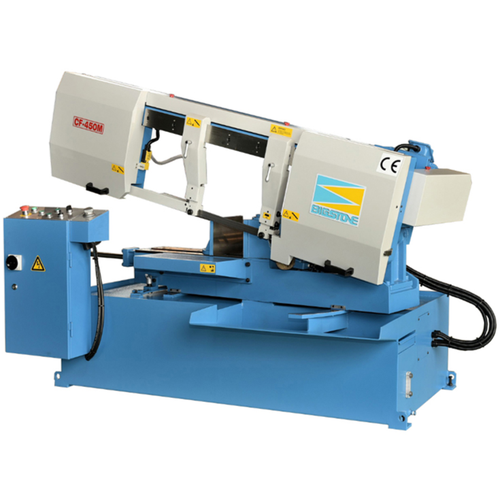

The CF‑450M Semi-Auto Miter Cutting Metal Band Saw from Big Stone Machinery is an industrial‑grade machine engineered for precision and versatility. Its swivel‑bed architecture enables rapid angle changes without moving the workpiece, while hydraulic clamping and tungsten carbide guides ensure superior repeatability.

Width 450 mm, Height 320 mm

Technical Executive Summary: High-Precision Semi-Auto Miter Solutions
The CF‑450M is an advanced solution for precision cutting across steel and aluminum profiles. By utilizing a swivel‑bed architecture, it enables rapid angle adjustments between 90° and 45° without moving the workpiece. Combined with hydraulic clamping and high‑durability tungsten carbide guides, this machine optimizes workflow for accurate, high‑volume production.

How to Set Up a 45° Miter Cut on the CF‑450M in 3 Steps
Step 1 – Swivel the Saw Bed to 45°: Rotate the saw head to the desired angle while the fixed vise stays at 90°, maintaining perfect material alignment.
Step 2 – Choose Blade Speed: Select the optimal speed from the five‑step pulley (25, 35, 45, 65, or 80 m/min) based on material type and thickness.
Step 3 – Start the Semi‑Automatic Cycle: The hydraulic vise clamps the workpiece; after the cut, the saw bow automatically returns to the top position.

CF‑450M Core FAQs
Q: What is the maximum cutting capacity of the CF‑450M?
A: At 90°, Ø330 mm round and 320 × 450 mm rectangular (H×W); 45° left cut 320×300 mm.
Q: How does the swivel‑bed design improve workflow?
A: The saw head rotates while the vise stays fixed at 90°, so the workpiece never moves — enabling faster, more accurate angle changes.
Q: What guide system does it use?
A: Tungsten carbide roller guides provide superior blade support, vibration suppression, and extended consumable life.

---
