Description

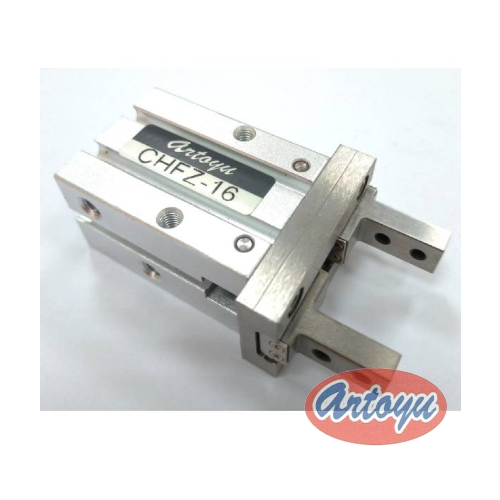

●6, 10, 16, 20, 25, 32, 40 bores are optional, double-action (HFZ), single-action normally closed (HFSZ), single-action normally open (HFTZ) optional
●Standard type (Φ6~Φ40), side mounting type (B) (Φ6), through-hole mounting type (N) (Φ6), bottom mounting type (F) (Φ6) jaws are optional
●The design of integrated linear guideway makes the pneumatic finger have high rigidity and high precision.
●A positioning pin is attached at the bottom of the linear guide to prevent the guide and the body from deviating
●Mounting holes are attached to the side and bottom for easy installation and use under different conditions
●There are square sensor installation grooves on this side and the opposite side, matching sensor model: HCS106R/HLAG33, no need to install accessories, convenient and flexible
●There are circular sensor installation grooves on this side and the opposite side, matching sensor model: HCS1O7R/HLAG93, no need to install accessories, convenient and flexible
●The body is equipped with a fixed datum center hole, which improves the fixing accuracy and improves the positioning consistency of repeated disassembly and assembly.
●Standard type (Φ6~Φ40), side mounting type (B) (Φ6), through-hole mounting type (N) (Φ6), bottom mounting type (F) (Φ6) jaws are optional
●The design of integrated linear guideway makes the pneumatic finger have high rigidity and high precision.
●A positioning pin is attached at the bottom of the linear guide to prevent the guide and the body from deviating
●Mounting holes are attached to the side and bottom for easy installation and use under different conditions
●There are square sensor installation grooves on this side and the opposite side, matching sensor model: HCS106R/HLAG33, no need to install accessories, convenient and flexible
●There are circular sensor installation grooves on this side and the opposite side, matching sensor model: HCS1O7R/HLAG93, no need to install accessories, convenient and flexible
●The body is equipped with a fixed datum center hole, which improves the fixing accuracy and improves the positioning consistency of repeated disassembly and assembly.
