Description

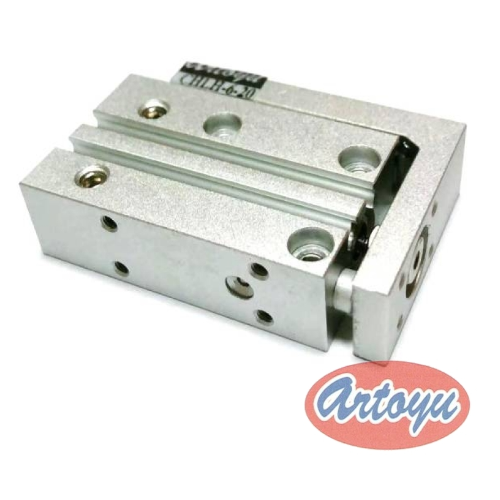

●With excellent straightness and non-rotation accuracy, it is more suitable for use in precision assembly
●Integrated design of miniature circulating ball linear guide and cylinder
●The top surface and front side of the slide table are equipped with mounting screw holes for fixing fixtures
●There are sensor installation grooves on both sides of the body, which is convenient to install the sensor
●Three sets of inlet and outlet are optional, which is convenient for piping
●The fixed cylinder can be installed from 4 directions, easy to use
●6, 10, 16, 20 and other cylinder diameters are optional, each cylinder diameter corresponds to various specifications and strokes, which is convenient for selection
●Integrated design of miniature circulating ball linear guide and cylinder
●The top surface and front side of the slide table are equipped with mounting screw holes for fixing fixtures
●There are sensor installation grooves on both sides of the body, which is convenient to install the sensor
●Three sets of inlet and outlet are optional, which is convenient for piping
●The fixed cylinder can be installed from 4 directions, easy to use
●6, 10, 16, 20 and other cylinder diameters are optional, each cylinder diameter corresponds to various specifications and strokes, which is convenient for selection
