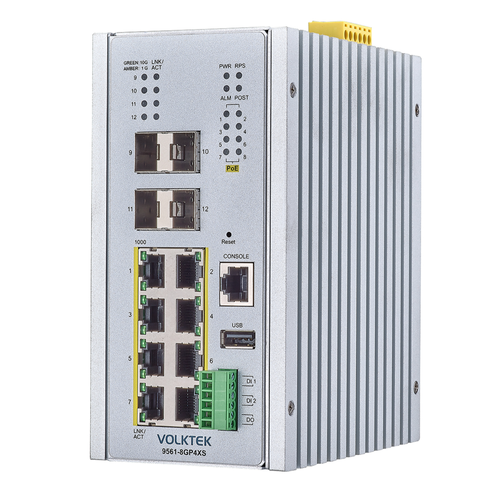

9561 TSN Switch Series

【Product Highlights】 Applying for CC-Link IE TSN certification
• Support Layer 3 routing - Efficient Inter-Subnet Communication
• 8 x 10/100/1000 btPoE ports – Supporting up to 90W per port for high-power PDs (Total PoE budget: 360W)
• 4 x 100/1G/10G SFP+ uplink slots – Supporting ultra-high-speed fiber connectivity for bandwidth-intensive applications
• 2 x pairs Dry Contact Digital Inputs (DI), 1 x Alarm Relay Digital output (DO)
• Full TSN & IEEE 1588v2 Support – Ensuring deterministic data transmission and precise time synchronization
• G.8032 & HSR/PRP Redundancy – Guaranteeing continuous network uptime and fast recovery from failures
• Industrial Grade Design – Rugged IP30 aluminum housing with -40˚C~70˚C (-40°F~158°F) operating temperature
Please visit our website for detailed product specifications.(https://www.volktek.com/productdetail/9561-8gp4xs-tsn.html)

---
