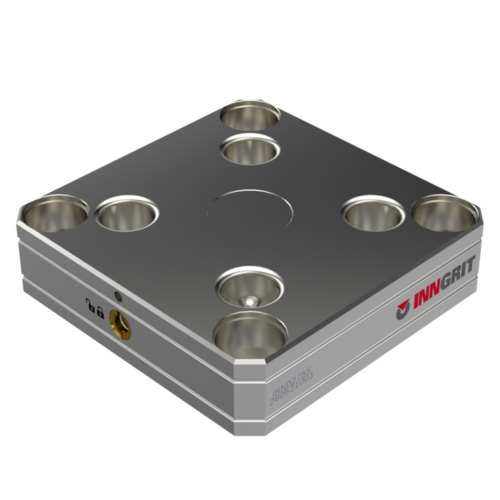

> The innovative single-piston design integrates positioning, clamping, air supply, and lifting functions into one compact mechanism, reducing component count by approximately 75% compared with the previous generation while significantly simplifying assembly and maintenance. Its ultra-thin 27 mm profile maintains high rigidity and repeatability of 0.005 mm, allowing workpieces to be positioned closer to the spindle center, minimizing tool interference, reducing vibration, and improving machining efficiency. A foolproof pull-stud design and intelligent seating detection provide real-time verification of clamping direction and pressure, preventing incorrect installation and pressure-loss failures. The self-locking mechanism maintains clamping force even during air or power interruptions, ensuring machining safety for high-value workpieces. The INNGRIT Universal Plate is fully compatible with internationally recognized systems through its universal pull-stud interface, enabling seamless integration with existing fixtures and equipment without rebuilding the entire workholding system, thereby maximizing customer investment while enhancing global competitiveness.
