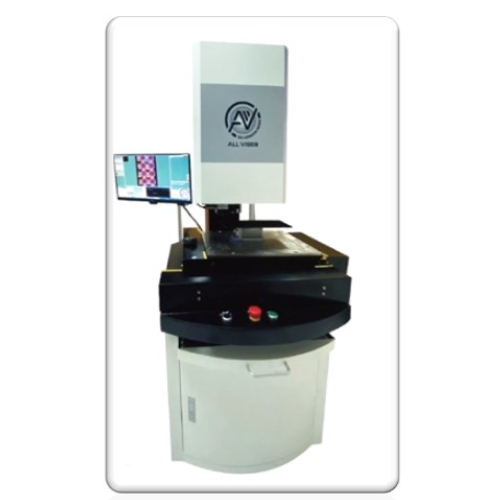

Three-dimensional profile measuring instrument

◆Measurement stroke (X, Y, Z): 300mm*200mm*200mm
◆Appearance size: 700*700*1800mm (varies according to design)
◆Weight: 160kg (varies according to design)
◆X, Y resolution: ≧0.01mm Z resolution: ≧0.005mm
◆Z repeatability: 0.5μm
◆Optical ruler resolution: 0.5μm
◆Operation method: intelligent program control / simple operation interface
◆Workbench: granite + aluminum alloy mobile platform
◆Transmission mode: X, Y, Z linear slide + ball screw
◆Power supply: 110V-220V±10%

---
