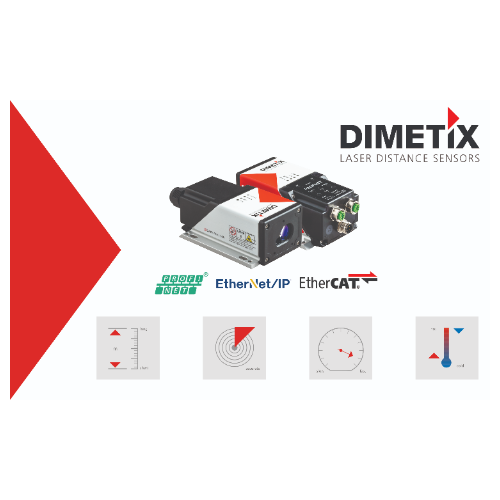

Laser Distance Measuring Sensor

D-Series

The D-Series Dimetix Laser Distance Sensors are at the forefront of our continuous development and innovation.
They measure long distances with the highest precision, reliability and speed, even in the most difficult situations.
The D-series can measure on dark surfaces - even in exterior applications with solar irradiation.
With this series, which is now avilable in a new modern design.
Dimetix has expanded its product range with a device, that has an output rate of 1 kHz.

-Measuring range 0 to 500 m
-Max. measuring rate 250 Hz
-1 mm accuracy
-Serial interfaces
-High precision analog output (0.1%)
-Two programmable digital outputs
-Digital input
-Digital output for error signalization
-Profibus interface (optional)
-PROFINET, EtherNet/IP and EtherCAT interfaces (optional)
-Degree of protection IP65
-Extended temperature range -40...+60°C

---
