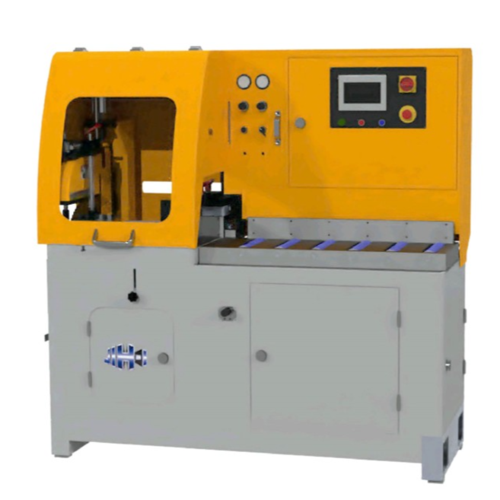

Type- NC Auto Series

1.Automation feed, positioning. oil spraying and cutting.
2.Concealed sawblade performs upward cutting for increased safety.
3.Ball screw is driven by servo motor for high accuracy.
4.Employ touch sensing screen for maximum operation convenience.
5.Equipped with NC control. PLC features extremely stable control performance. Electronic control parts are CE certified.
6.The computer automatically records required time and quantity for each machining, providing convenient calculation of machining cost.
7.Small dimesions of the machine to save space.
8.18DB/24DB Feeding length 290mm/360mm in one cycle the feeding system is available recycle feeding.
9.The feeding system is standard with hydraulic-pneumatic also we have option for hydraulic to make more powerful cutting.
10.Feed methods : 1. Stepping feed. 2. Reciprocating feed. 3. Manual feed

---
