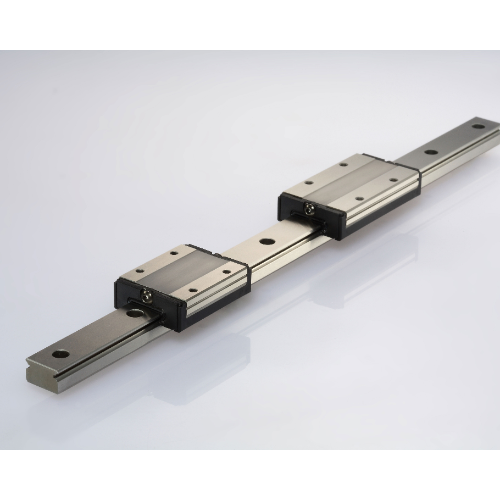

Miniature Type, MSC, MSD Stainless Steel Series

Characteristics︰MSC standard type and MSD wide type stainless steel series are applied two rows with gothic-arch groove and designed to contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Furthermore, ultra compact and low friction resistance design is suit to compact equipment. The lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore,the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.
1.Four-way Equal Load︰The two trains of balls are allocated to a gothic-arch groove contact angle at 45°, thus each train
of balls can takeup an equal rated load in all four directions.
2.Ultra Compact︰The ultra compact design is suit to the compact application with limited in space.
3.Ball Retainer︰Design with ball retainer can prevent ball form dropping.
4.Smooth Movement with Low Noise︰The simplified design of circulating system with strengthened synthetic resin accessories makes the movement smooth and quiet.
5.Interchangeability︰For interchangeable type of linear guideway, the dimensional tolerances are strictly maintained within a reasonable range, and this has made the random matching of the same size of rails and carriages possible. Therefore, the similar preload and accuracy can be obtained even under the random matching condition. As a result of this advantage, the linear guideway can be stocked as standard parts, the installation and maintenance become more convenient. Moreover, this is also beneficial for shortening the delivery time.

---
