Description

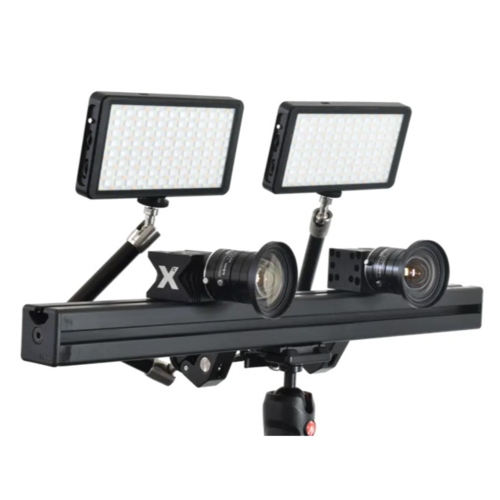

The X-Sight 3D DIC optical measuring system is versatile, complex, and easy to operate. X-Sight 3D DIC is an adaptable system for sophisticated and varied stereoscopic strain analysis involving out-of-plane deformations and motion measurements. Its high accuracy and reliability guarantee robust data outputs for various applications, including high-speed imaging. The system can also be used as the most advanced customized optical extensometer.
With comprehensive post-processing analytic functionality, the system provides an effective way to validate FEM results, verify CAD models, and perform structural deformation analyses.
X-Sight 3D DIC system can be equipped with a large variety of cameras, lenses, lights, and further optical accessories.
With comprehensive post-processing analytic functionality, the system provides an effective way to validate FEM results, verify CAD models, and perform structural deformation analyses.
X-Sight 3D DIC system can be equipped with a large variety of cameras, lenses, lights, and further optical accessories.
