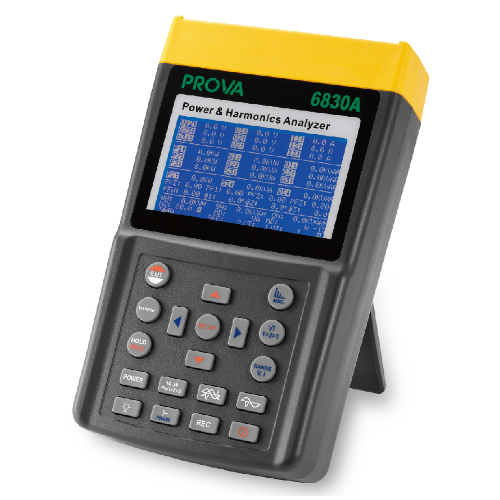

Power and Harmonics Analyzer

■Power Analysis for 3P4W, 3P3W, 1P2W, 1P3W
■True RMS value (V123 and I123)
■Active Power (W, KW, MW, GW)
■Apparent and Reactive Power (KVA, KVAR)
■Power Factor (PF), Phase Angle (Φ)
■Energy (WH, KWH, KVARH, PFH)
■AC Current (see below) and Voltage measurement: True RMS, Auto Range.
1. 6830A+6801: 0.04A to 100A
2. 6830A+6802: 0.4A to 1000A
3. 6830A+3007: 10A to 3000A
4. 6830A+3009: 6A to 1200A
5. 6830A+3006: 20A to 6000A
■Capable of analyzing IT standby power consumption to the maximum demand of a factory
■Display of 35 Parameters in One Screen (3P4W)
■Programmable CT (1 to 600) and PT (1 to 3000) Ratios
■Display of Overlapped Voltage and Current Waveform
■Average Demand (AD in W, KW, MW)
■Maximum Demand (MD in KW, MW, KVA, MVA) with Programmable Period
■Harmonic Analysis to the 99th Order
■Display of 50 Harmonics in one Screen with Waveform
■Display of Waveform with Peak Values (1024 Samples / Period)
■Analysis of Total Harmonic Distortion (THD-F)
■Graphic Phasor Diagram with 3 Phase System Parameters
■Capture 28 Transient Events (Time + Cycles) with Programmable Threshold (%)
■DIP, SWELL, and OUTAGE are included in transient events.
■3 Phase Voltage or Current Unbalance Ratio (VUR, IUR)
■3 Phase Voltage or Current Unbalance Factor (d0%, d2%)
■Calculated Unbalanced Current through Neutral Line (In)
■512K Memory with Programmable Interval (Sampling time from 2 to 3000 seconds, 17,000 records for
3P4W system)
■Output of Waveform, Power Parameters and Harmonics at Command
■Large Dot Matrix LCD Display with Backlight
■Software to work with PC via Optical Isolated RS-232C to USB Interface
■Built-in timer and calendar for data logging

---
