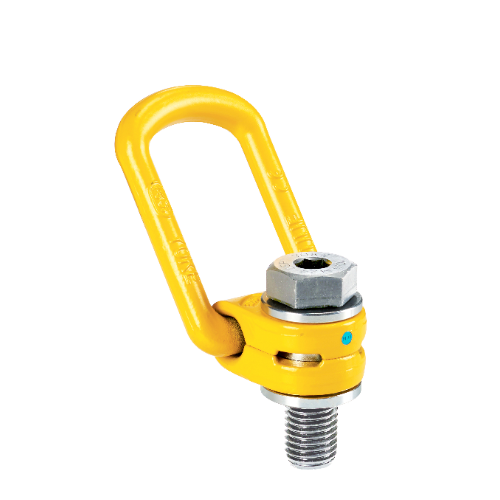

8-211 Lifting Point

•Rotates through 360° and pivot 90°.
•Manufactured from alloy steel, quenched and tempered.
•Manufactured and tested in accordance with EN1677-1.
•Load rated parts are 100% magnaflux crack detected.
•Individual forged parts and cap screw are traceable to Test Certification.
•Bolts are Metric thread (ASME / ANSIB18.3.1M), specification is grade 12.9 alloy socket head screw per DIN EN ISO 4762.
•Individually proof tested to 2.5 times the WLL.
•Fatigue rated to 1.5 times the WLL.
•All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
•Quick and simple assembly, just a tapped hole is required.

---
