Description

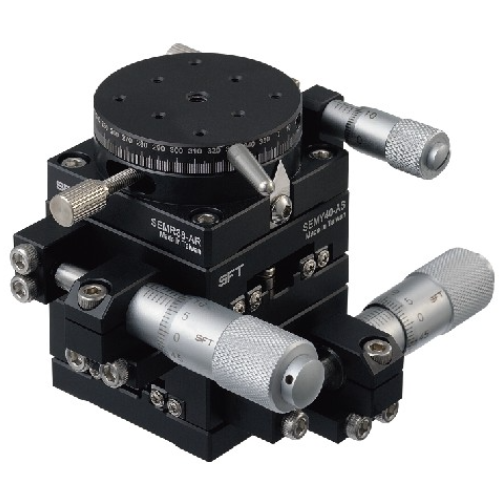

The positioning stage for crossed roller bearing guilding is composed of moving rails with 2 V-groove surfaces harden finish, ground precisely,and roller bearings which are connective and take turns moving in 90 degrees to meet requirement of high parallism and high flatness.
In structure, V-groove and crossed roller acquire movement in high accuracy and capacity by linear transmission to act a high precision movement and load capacity performance.
In structure, V-groove and crossed roller acquire movement in high accuracy and capacity by linear transmission to act a high precision movement and load capacity performance.
