Description

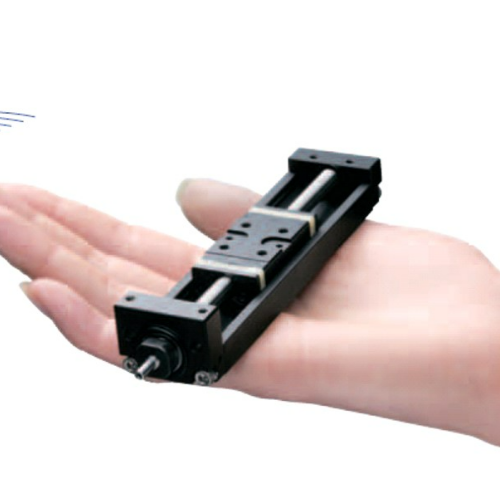

Integrating a ball screw, linear guide, and support bearing,
A lightweight and compact uniaxial actuator.
Size
・MCM02 Model
･Width：20
･Shaft diameter：φ6
･Lead：1-2
･Preload：Clearance (0.020 or less), (0.003 or less)
･Accuracy：Advanced (H), Precision (P)
･Stroke：50-150
・MCM03 Model
･Width：34
･Shaft diameter：φ6 (Lead 1, 2), φ8 (Lead 5, 10, 12), φ10 (Lead 15)
･Preload：Clearance (0.020 or less), (0.003 or less)
･Accuracy：Advanced (H), Precision (P)
･Stroke：50-250
A lightweight and compact uniaxial actuator.
Size
・MCM02 Model
･Width：20
･Shaft diameter：φ6
･Lead：1-2
･Preload：Clearance (0.020 or less), (0.003 or less)
･Accuracy：Advanced (H), Precision (P)
･Stroke：50-150
・MCM03 Model
･Width：34
･Shaft diameter：φ6 (Lead 1, 2), φ8 (Lead 5, 10, 12), φ10 (Lead 15)
･Preload：Clearance (0.020 or less), (0.003 or less)
･Accuracy：Advanced (H), Precision (P)
･Stroke：50-250
