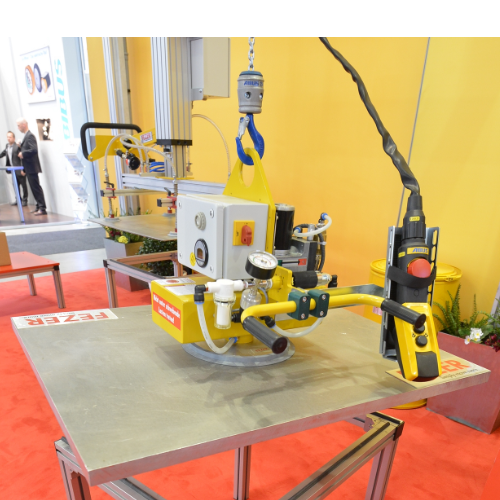

Fezer VacuBoy Vacuum handling machine

Fezer VacuBoy-Universal Vacuum Handling Machine
Divided into the following six types, suitable for various types of plate handling or flipping.

VacuBoy VB (Maximum load 2 tons)
Suitable for horizontal handling of high-density boards. Simple and adjustable mechanism and ergonomic operation design can be used in various industries.

VacuBoy VB-90E (Maximum load 1.5 tons)
VB-90E can be turned 90 degrees by motor or gear mechanism, and the control button can be operated by integrated crane key switch or remote control, the operator can easily turn the workpiece and stay at any angle.
It only takes 15 to 20 seconds to flip 90 degrees.

VacuBoy VB-180E (Maximum load 1 ton)
The VB-180E can be turned 180 degrees by motor or gear mechanism, and the control button can be operated by integrating the crane key switch or remote control. The operator can easily turn the workpiece and stay at any angle.
It only takes 30 to 45 seconds to flip 180 degrees.

VacuBoyMini VBM (Maximum load 500kg)
The compact size and light weight of VacuBoyMini are suitable for various handling situations. It can be used with a single suction cup or multiple suction cups to achieve various handling tasks.
If there is a need to replace the suction cup, it can also be quickly replaced through the adapter ring.

VacuBoyVario (Maximum load 500kg)
VacuBoyVario is a variable-use vacuum suction cup, with a wire rope and suction cup, which can lift the workpiece horizontally or vertically, and the two suction cups can also be sucked and placed independently.
The flexible wire rope design allows the VacuBoyVario to overcome tasks that other handlers cannot, and provide the best variability.

VacuBoyAkku VB-Akku (Battery powered version)
The VacuBoyAkku is powered by a replaceable battery, and the standard model is equipped with a vacuum motor control switch to save power and increase battery life.

---
