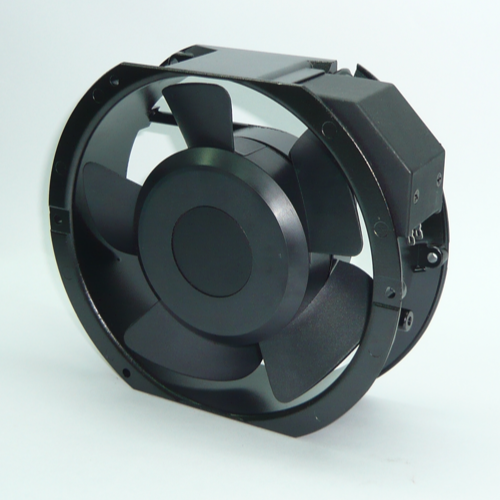

SK172散熱風扇

The size is 172x150x51mm, or for inch: 6.77"x5.91"x2.01". Its weight is 1kilo with two-ball bearings.
This model passes dialectic withstand voltage test: 1 min. at 1500VAC, 50/60Hz, and has approved by UL, CUL, TUV and CE. Also it is environmental friendly with RoHS compliant.
Two voltages can be applied: 110V or 220V.
Three speed options are available – high, medium and low. Under 60Hz high speed model performs 3200RPM.
The maximum airflow is 208CFM and maximum static pressure is 0.67 inch-H2O.

This is one of best belling models with unique double-D shape, which is easily to attach on any kind of equipment. Another frame option of round shape is for customized selection.

---
