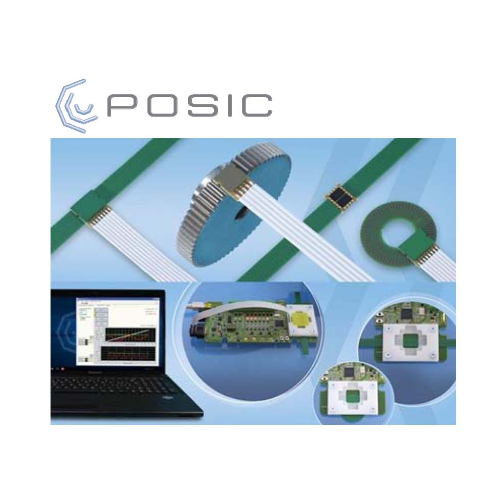

POSIC SA: 電感式編碼器位置傳感器套件

瑞士POSIC 電感式編碼器套件均基於“coil-on-chip”技術，可製造世界最小的電感式傳感器 inductive sensor。
電感式傳感器在晶片的內部包含傳感器操作（differential transformer差動變壓器）插值，線性化和介面接口連接所需的所有電子元件。

產品特色:
Rotary encoders: Incremental ID4501C、ID1102C、IT3402C、IT3403C、IT5602C
-Output format ... A and B in quadrature + Index
-Resolution ........ 256 – 1’474’560CPR
-Maximum speed . up to 8’600RPM
-Airgap .............. up to 0.6mm
-Supply ............. 5V, 30mA
-Temperature .... -40 to 125°C
-Codewheels ..... diameter 28, 53 or 73mm

Linear encoders: Incremental ID4501L、ID1102L、IT3402L、IT5602L、Absolute AP3403L、AP5603L
-Output format ... A and B in quadrature
-Resolution ........ down to 0.02um
-Maximum speed. up to 32m/s
-Airgap .............. up to 0.6mm
-Supply ............. 5V, 10mA
-Temperature .... -20 to 100°C

Gear encoders: Incremental ID4501G、ID1102G、IS1102
-Output format .. Digital pulse
-Pulse frequency . 0-24 kHz
-Airgap ............. 1mm
-Supply ............ 5V, 15mA
-Temperature.. -40 to 125°C
-Gear material..Steel or Aluminum

原廠網址 https://www.posic.com/EN/

---
